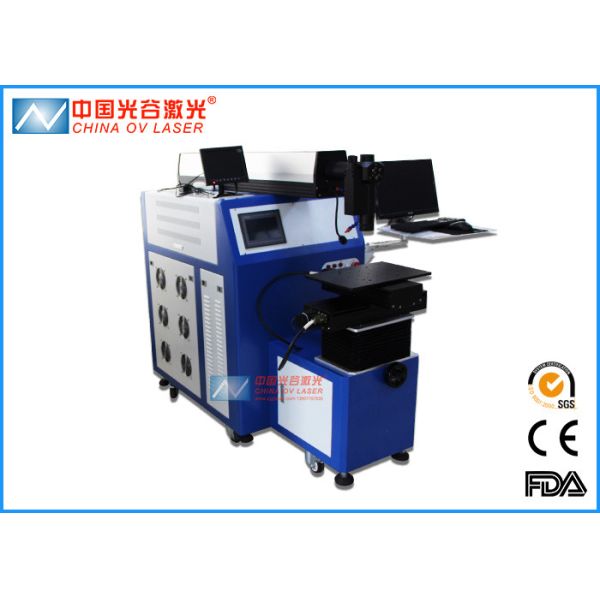

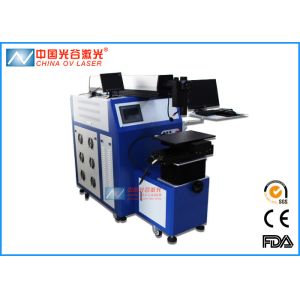

    Steel Tube CNC Laser Welding Machine with CCD Observing System

    Ask Lasest Price
    Brand Name : OV LASER
    Model Number : OV- LW400
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100 sets / month
    Delivery Time : 30 - 45 days
    • Product Details
    • Company Profile

    Steel Tube CNC Laser Welding Machine with CCD Observing System

    Steel Tube CNC Laser Welding Machine with CCD Observing System


    Why lase welding mould?

    Large molds is essential in industrial production, such as large stamping dies, large plastic molds, large pallet molds, large tire molds, etc.,There are some troubles unavoidably when mold is running and it is hard to repair it. So that China OV LASER has developed boom mold laser welding machine,which is specialized in repairing mold.


    After welding,no cracks,sand hole,scar,deformation,oxidation,suitable for mirror polishing,etching, etch, selects the corresponding welding parameters can make the welding pacts corresponding to nearly HRC60 degree of hardness.


    Performance Feature

    1. Joystick control laser head electric, Promise speed, suitable for all kinds of molds at any angle and any position of the welding.

    2 .For large molds, you can use the workbench, directly on the ground or forklift for mold welding.

    3. Adopt imported ceramic condenser cavity, high reflectivity, long lifetime.

    4. Equipped with electric lift precision working table, flexible and convenient for small mold welding.


    Applications of Laser Mould Welding Machine:
    Laser Mold Welding Machine Mainly Used for Mould Making Industry of Cell phone, Digital Products, Auto and Motorcycle, etc. Suitable for Processing Materials of Die Steel, Stainless Steel, Beryllium Copper, Precious Metal and Super hard Materials, etc.


    Parameter Data

    Model

    OV LW400

    Rated output power

    400W

    Laser Type

    Nd:YAG Pulse xenon lamp

    Laser Wavelength

    1.064μm

    Max Pulse Energy

    90J/10ms

    Pulse width

    0.5ms-20ms

    Pulse Frequency

    1-50Hz

    Spot Adjustment Range

    0.2mm-2mm

    Welding Depth

    ≤3.0mm

    Observing system

    Microscope (Optional CCD image amplification monitoring system)


    Boom Work Parameters

    Three-axis induction infinitely variable speed, working radius1.5m

    X=100MM

    Y=100MM(Dynamic rocker adjustment)

    Z=4800mm 270°Swing welding

    X,Y,Z

    Work Table

    Bearing 200Kg , Panel 500*350mm (50*50mm-M6 location hole)


    Table Travel

    X=200mm

    Y=100(manual control)

    Z1=150mm(foot-plate electrical control)

    Z2=150mm(manual control)

    Maximum Power Consumption

    12KW

    Cooling System

    Integrative forced cooling intelligent water tank

    Power Supply

    380VAC±5%/50Hz/63A

    Working Environment


    Clean and dust-free/no source/13℃-28℃

    Humidity 5%-75%

    Protective Gas

    One Way(Argon)

    Welding Wire Diameter

    0.1mm~0.6mm

    Optional

    anti-laser glasses/rotary fixture/CCD Monitor


    Outline Dimension

    (L*W*H)Mainframe:500×1200×1280mm Water Chiller:540×650×780mm(In kind prevail)


    Welding Samples
